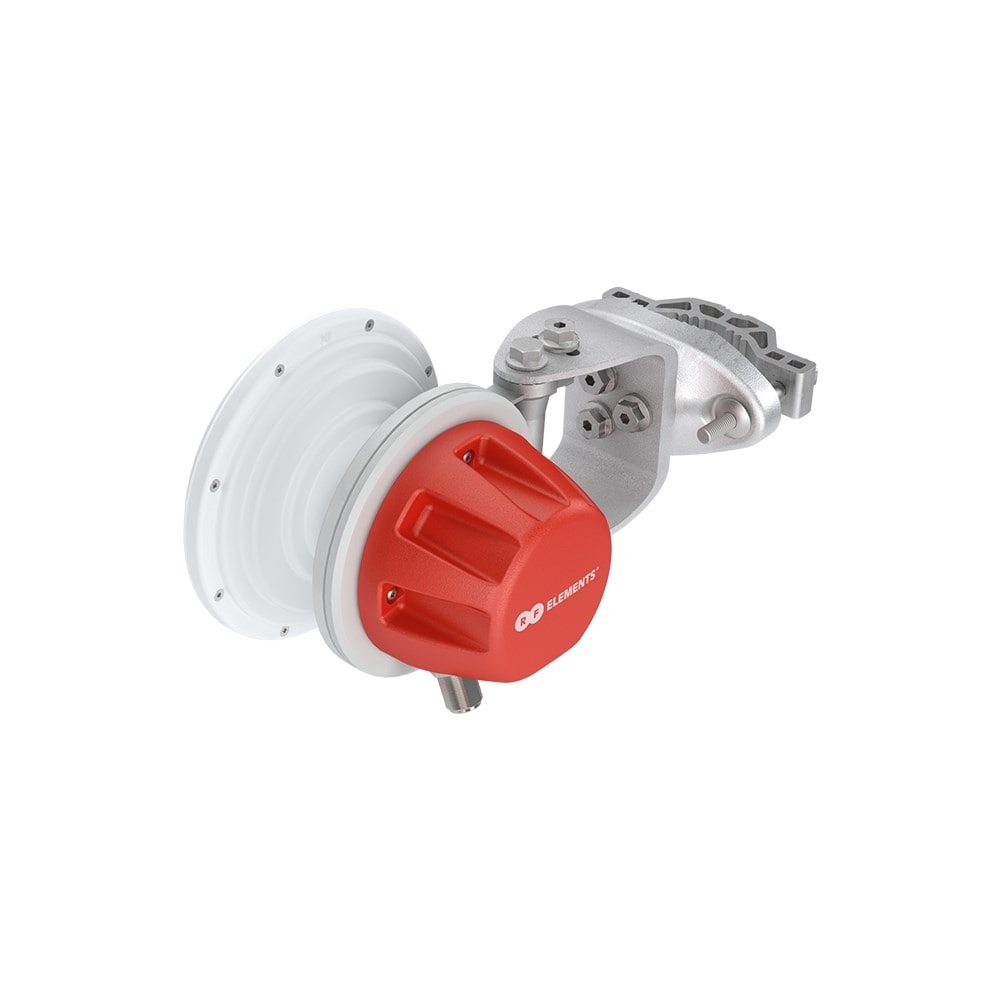

RF ELEMENTS HG3-CC-S70 N-TYPE 11.5 DBI HORN ANTENNA
Discover the reliability and performance of the RF Elements HG3-CC-S70 N-Type 11.5 dBi horn antenna. Designed for professional applications in wireless networks, this antenna provides a stable and strong connection, even in harsh conditions. Ideal for network operators, internet service providers, and anyone who requires the highest quality and reliability.
- High energy gain: 11.5 dBi provides a strong signal and long range.
- N-Type connector: Standard connector guarantees compatibility with most devices.
- Solid construction: Weather-resistant, ensuring long-term reliability.
- Precise matching: Optimal data transmission parameters.
- Easy installation: Simple assembly and configuration.
- Professional application: Ideal for wireless networks, access points, and base stations.
RF Elements is a renowned manufacturer of networking equipment, known for innovative solutions and high-quality products. The HG3-CC-S70 antenna is an excellent example of their commitment to providing reliable and efficient solutions for professionals. By choosing RF Elements products, you invest in the stability and quality of your network.
The HG3-CC-S70 N-Type 11.5 dBi horn antenna is widely used in various scenarios. It can be used to build access points in public places such as parks, squares, or shopping centers. It is also ideal for corporate networks, providing a stable connection for all users. Thanks to its weather resistance, the antenna can be installed outdoors without fear of damage.
A unique feature of the HG3-CC-S70 antenna is its precise matching to the operating frequency. As a result, the antenna provides optimal data transmission parameters, minimizing signal loss. The solid construction and high-quality materials guarantee long-term reliability, even in harsh conditions. The antenna is also easy to install and configure, allowing for quick and efficient network startup.
The RF Elements HG3-CC-S70 N-Type 11.5 dBi horn antenna is an excellent choice for anyone who values reliability, performance, and quality. With it, your wireless network will operate stably and efficiently, providing you with comfort and satisfaction.
Specifications
| Impedance | 50 Ω |
| Antenna type | Antena tubowa |
| Montaż rur | 30 - 90 mm |
| Polarization | Podwójna polaryzacja |
| Mounting type | Pręt |
| Quantity | 1 |
| Purpose | Zewnętrzna |
| Product weight | 1,8 kg |
| Product color | Biały, Czerwony |
| Connector Type | Żeńskie |
| Housing material | Cynk, Aluminium, Stal nierdzewna, Polipropylen (PP) |
| Nachylenie na dół | 25° |
| Antenna connector type | N-Typ |
| IP protection rating | IP55 |
| Product height | 152 mm |
| Wind load | 22 |
| Product width | 312 mm |
| Packaging height | 183 mm |
| Product depth | 162 mm |
| Frequency band | 5.18 - 6.4 GHz |
| Packaging width | 305 mm |
| Weight with packaging | 2,6 kg |
| Packaging depth | 239 mm |
| Front to back ratio | 30 dB |
| Shipping time (in hours) | 96 |
| Vertical beam width | 70° |
| Horizontal Beam Width | 70° |
| Maximum wind speed | 160 km/h |
| Antenna gain level (max) | 11,5 dBi |
| UV resistance | Tak |
| Temperature range (operation) | -30 - 55 °C |
| Length of main case (outer) | 510 mm |
| Products per outer master carton | 10 szt. |
| Outer master carton height | 335 mm |
| Outer master carton width | 940 mm |
| Gross weight of main case (outer) | 27,4 kg |
| Voltage Standing Wave Ratio (VSWR) | 1,6/1,9 |
| Manufacturer | RF Elements |
