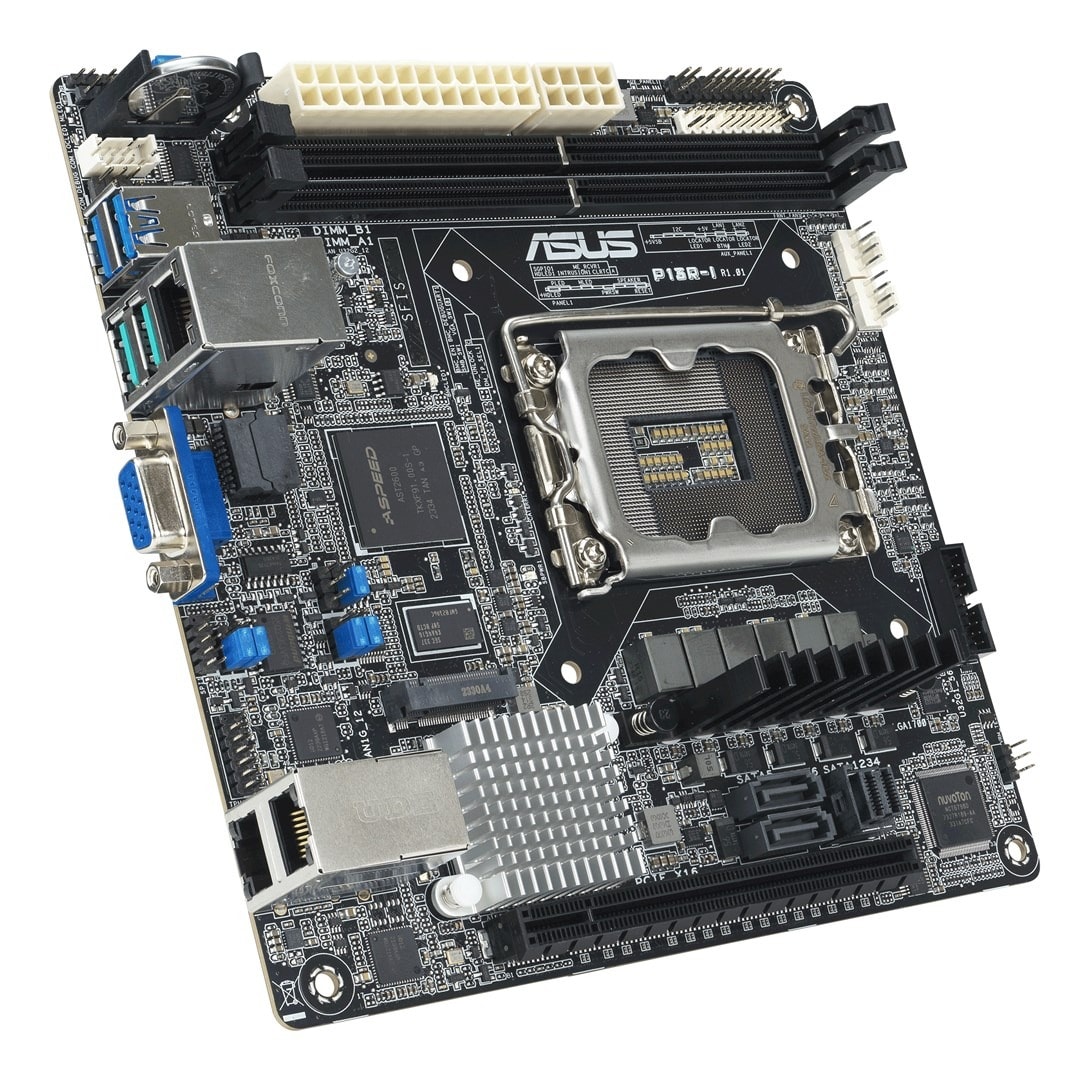

Asus P13R-I - Mini-ITX Motherboard for Intel Xeon E-24XX
Kliknij = pełny ekran
1 / 3

ASUS P13R-I MINI-ITX MOTHERBOARD INTEL XEON E-24XX


Discover reliability and performance in a compact format with the Asus P13R-I motherboard. Designed for servers and workstations, this miniITX board offers a solid foundation for your system. Ideal for applications where space is limited but high performance is required.


  • Support for Intel Xeon E-24XX processors: Provides high computing performance.
  • MiniITX format: Compact dimensions, ideal for small cases.
  • Two DIMM slots: Supports DDR5 memory for fast data processing.
  • Six SATA ports: Allows you to connect multiple hard drives and SSDs.
  • One M.2 slot: For fast NVMe SSDs.
  • Two 1GbE ports: Provide a reliable network connection.
  • ASMB11-iKVM: Enables remote server management.


Asus is a renowned manufacturer of computer hardware, known for the high quality and reliability of its products. The P13R-I motherboard is designed for demanding users who need a stable and efficient platform for work. It uses high-quality components, which guarantee a long service life and reliability in difficult conditions.


The Asus P13R-I motherboard is ideal for server applications, workstations and embedded systems. Thanks to its compact dimensions, it can be easily mounted in small cases, which makes it an ideal solution for applications where space is limited. Support for Intel Xeon E-24XX processors provides high computing performance, necessary for demanding tasks.


A unique feature of this motherboard is the presence of the ASMB11-iKVM module, which enables remote server management. Thanks to this, administrators can monitor and control the system from anywhere in the world, which greatly facilitates server management and problem solving. In addition, the board has two 1GbE ports, which provide a reliable network connection.


The Asus P13R-I motherboard is an excellent choice for people who are looking for a reliable and efficient platform for building a server or workstation in a compact format. Thanks to high-quality components, support for Intel Xeon E-24XX processors and the ASMB11-iKVM module, this motherboard will meet the expectations of even the most demanding users. The Asus P13R-I motherboard is an excellent choice for people who are looking for a reliable and efficient platform for building a server or workstation in a compact format. Thanks to high-quality components, support for Intel Xeon E-24XX processors and the ASMB11-iKVM module, this motherboard will meet the expectations of even the most demanding users.

CARUNO-2026-01-07-10:20:28 cu

Specifications

Wi-FiNie
ProcessorIntel® Xeon®, Intel Xeon E, Intel® Pentium®
TPM connectorTak
PurposeSerwer
Product colorCzarny
Graphics cardAST2600
Processor socketLGA 1700
Number of COM ports1
Cooling typePasywne
Processor manufacturerIntel
ECC compatibilityECC
Wired LANTak
Product width170 mm
Memory slots typeDIMM
Number of M.2 (M) slots1
Product depth170 mm
Motherboard form factorMini ITX
Number of memory slots2
Motherboard chipsetIntel C262
Number of SATA III connectors6
Number of HDDs supported6
Number of VGA (D-Sub) ports1
Chipset familyIntel
Memory channel supportDwukanałowy
Front panel connectorTak
Supported drive typesHDD & SSD
Supported memory typesDDR5-SDRAM
Supported processor socketsLGA 1700
CPU fan connectorTak
Number of CPU fan connectors1
Maximum memory capacity64 GB
Ethernet interface typeGigabit Ethernet
Temperature range (operation)10 - 50 °C
1st largest M.2 key size2280
PCI Express x16 slots (Gen 5.x)1
On-board graphics card memory64 MB
Temperature range (storage)-40 - 70 °C
Chassis intrusion connectorTak
Permissible relative humidity20 - 90%
Number of Ethernet LAN (RJ-45) ports3
Number of case fan connectors2
Parallel processing supportNieobsługiwany
Supported hard drive interfacesPCI Express 4.0, SATA III
1st M.2 highest PCI Express generation4.0
Supported memory clock speeds4400 MHz, 4800 MHz, 3600 MHz, 4000 MHz
Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports2
Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports2
Supported memory clock speed (max)4800 MHz
Number of supported storage drive sizes7
ManufacturerAsus
Motherboard typeminiITX
ChipsetIntel C262
Disc typeminiITX

Asus P13R-I - Mini-ITX Motherboard for Intel Xeon E-24XX

341.35 £

Gross price, incl. VAT

Availability: 10 pcs
Delivery time: 3 business days
Safe shopping
BLIK, Visa, Mastercard
TWWyprodukowano w: Tajwan

EAN: 4711387372340
