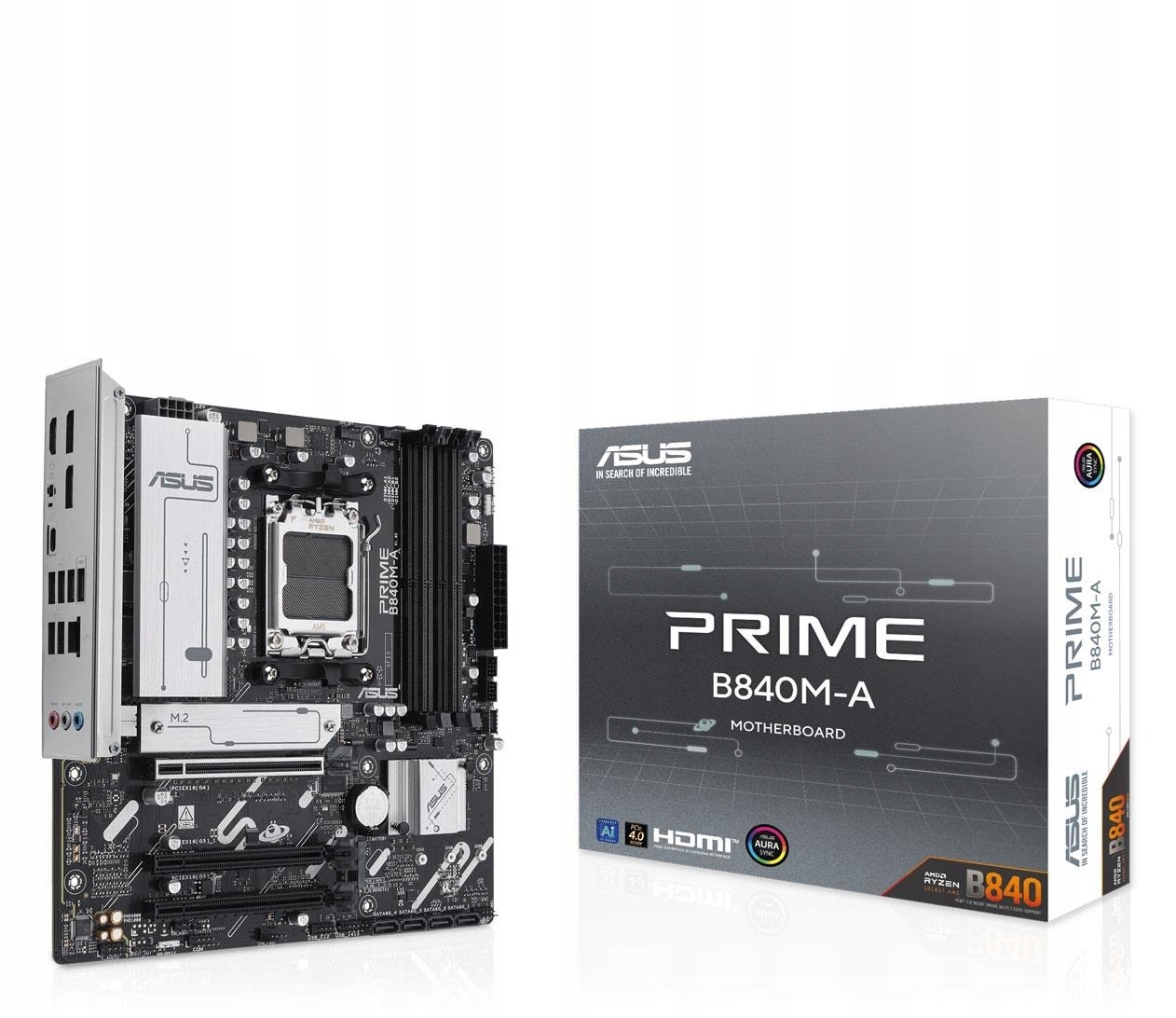

ASUS PRIME B840M-A-CSM AMD B840 SOCKET AM5 MICRO ATX MOTHERBOARD
Discover reliability and performance with the ASUS PRIME B840M-A-CSM motherboard. Designed for the latest AMD processors, this micro ATX board offers a solid foundation for your computer. Ideal for both office and home use, providing stability and energy efficiency.
- Support for AMD Ryzen processors of the latest generation
- Micro ATX format – compact dimensions, ideal for smaller cases
- AM5 socket – compatibility with the latest AMD processors
- Solid construction – high-quality components guarantee a long service life
- Easy configuration – intuitive BIOS and ASUS software
- Support for DDR5 memory – fast data transfer and high performance
- USB 3.2 Gen 1 ports – fast data transfer from external devices
ASUS is a renowned manufacturer of computer hardware, known for its high quality and innovative solutions. ASUS motherboards from the PRIME series are characterized by reliability and stability, making them an ideal choice for users looking for a solid foundation for their computer. The B840M-A-CSM model is an excellent combination of performance and functionality, offering everything you need to build a modern system.
The ASUS PRIME B840M-A-CSM motherboard is the ideal solution for people who value reliability and stability. Thanks to the support of the latest AMD Ryzen processors, this board provides high performance in every application. The micro ATX format makes the board compatible with smaller cases, allowing you to build a compact and efficient computer. Solid construction and high-quality components guarantee a long service life and reliability.
ASUS PRIME B840M-A-CSM is a motherboard that offers everything you need to build a modern computer. Thanks to the support of DDR5 memory, this board provides fast data transfer and high performance. USB 3.2 Gen 1 ports enable fast data transfer from external devices. The intuitive BIOS and ASUS software make it easy to configure and optimize the system. Choose ASUS PRIME B840M-A-CSM and enjoy reliability and performance at the highest level.
Specifications
| Wi-Fi | Nie |
| LED RGB | Tak |
| Processor | AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series |
| Cables | SATA |
| BIOS type | UEFI AMI |
| HDMI version | 2.1 |
| RAID levels | 1, 5, 0, 10 |
| RAID service | Tak |
| TPM connector | Tak |
| Purpose | PC |
| Product weight | 910 g |
| S/PDIF port | Tak |
| Product color | Szary |
| Power supply type | ATX |
| Line-in | Tak |
| Processor socket | AM5 |
| Screws included | Tak |
| Number of COM ports | 1 |
| DisplayPort version | 1.4 |
| Number of DisplayPorts | 1 |
| Processor manufacturer | AMD |
| Number of HDMI ports | 1 |
| ECC compatibility | ECC lub Non-ECC |
| Wired LAN | Tak |
| Product width | 244 mm |
| Memory slots type | DIMM |
| Number of M.2 (M) slots | 3 |
| BIOS memory size | 256 Mbit |
| Headphone outputs | 1 |
| Packaging height | 67,5 mm |
| Product depth | 244 mm |
| Number of USB 2.0 ports | 4 |
| Audio output channels | 7.1 kan. |
| Unbuffered memory | Tak |
| Packaging width | 275 mm |
| Motherboard form factor | Micro ATX |
| Number of memory slots | 4 |
| Number of RGB LED connectors | 3 |
| Motherboard chipset | AMD B840 |
| Weight with packaging | 1,45 kg |
| Packaging depth | 275 mm |
| Number of SATA III connectors | 4 |
| Number of HDDs supported | 4 |
| Maximum resolution | 7680 x 4320 px |
| Chipset family | AMD |
| Memory channel support | Dwukanałowy |
| Front panel connector | Tak |
| Supported drive types | HDD & SSD |
| Supported memory types | DDR5-SDRAM |
| ATX (24-pin) power connector | Tak |
| Quick installation guide | Tak |
| Supported processor sockets | Gniazdo AM5 |
| CPU fan connector | Tak |
| EPS power connector (8-pin) | Tak |
| Number of CPU fan connectors | 2 |
| Maximum memory capacity | 192 GB |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| 1st largest M.2 key size | 2280 |
| 2nd largest M.2 key size | 2280 |
| 3rd largest M.2 key size | 2280 |
| PCI Express x16 Slots (Gen 3.x) | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) ports | 2 |
| Front panel audio connector | Tak |
| Number of Ethernet LAN (RJ-45) ports | 1 |
| Number of case fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 1 |
| Parallel processing support | Nieobsługiwany |
| Supported hard drive interfaces | M.2, SATA III |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 highest PCI Express generation | 3.0 |
| Supported Windows operating systems | Windows 11, Windows 10 x64 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports | 1 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports | 2 |
| Supported memory clock speed (max) | 7600 MHz |
| Number of supported storage drive sizes | 7 |
| Board format | micro ATX |
| Manufacturer | ASUS |
| Disc format | micro ATX |
ASUS PRIME B840M-A-CSM - AMD B840 Socket AM5 micro ATX Motherboard
Gross price, incl. VAT
Shipping costs:
Wyprodukowano w: TajwanEAN: 4711387797204
