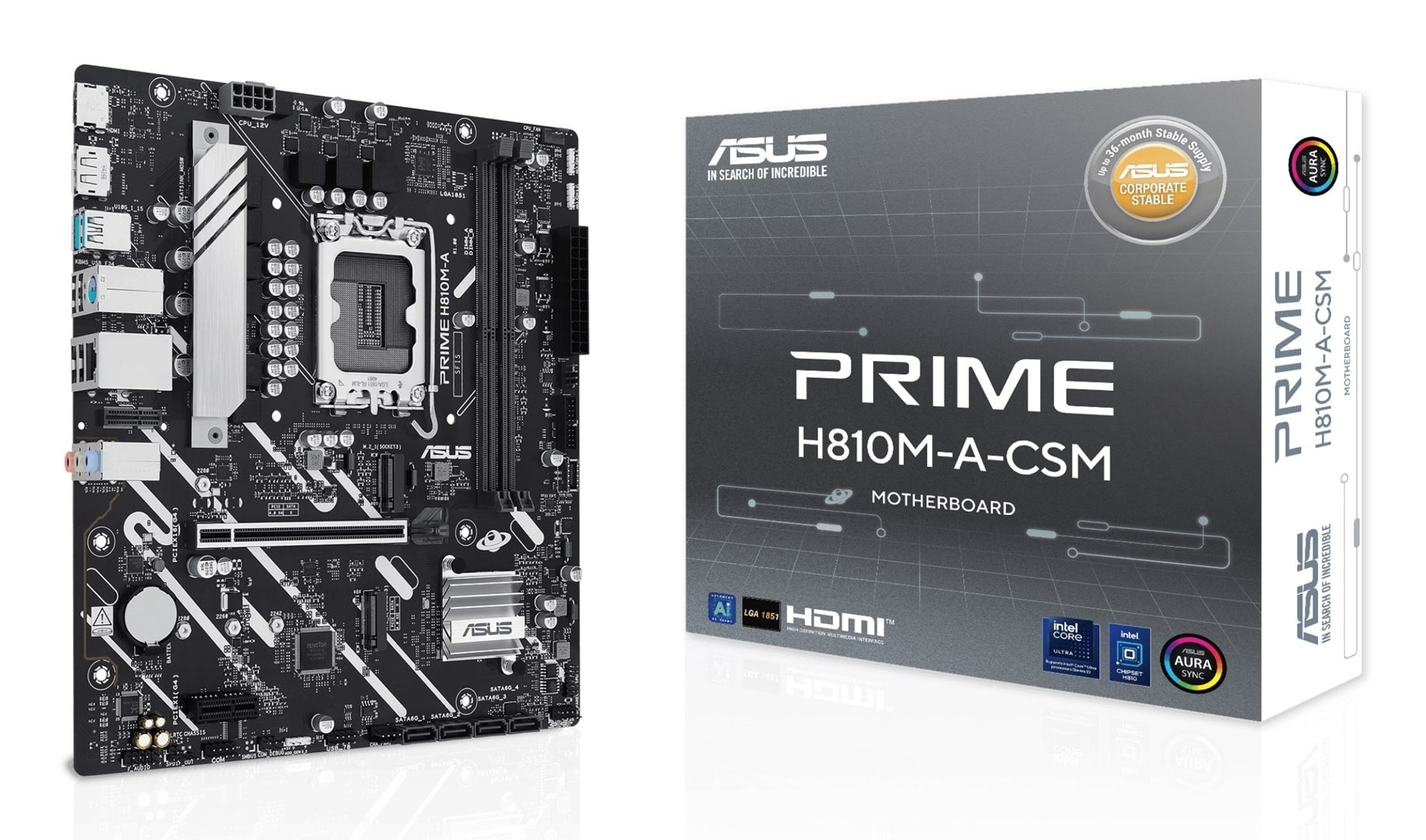

ASUS PRIME H810M-A-CSM MOTHERBOARD
Discover reliability and performance with the ASUS PRIME H810M-A-CSM motherboard. Designed for stable operation and compatibility with Intel processors, this motherboard is an excellent choice for anyone looking for a solid foundation for their computer. Ideal for both office and home use, it will ensure smooth operation of all your favorite applications.
- Socket 1150: Compatibility with a wide range of Intel processors.
- Micro-ATX: Compact size, ideal for smaller cases.
- DDR3 memory support: Fast and efficient data transfer.
- SATA 6Gb/s connectors: Fast access to data from hard drives and SSDs.
- USB 3.0: Super-fast data transfer from external devices.
- High sound quality: Realistic and clear sound.
- Overvoltage protection: Protection of components against damage.
ASUS is a renowned manufacturer of computer components, known for the high quality and reliability of its products. ASUS PRIME series motherboards are synonymous with stability and performance, which is confirmed by numerous awards and positive reviews from users around the world. By choosing ASUS PRIME H810M-A-CSM, you are investing in a product that will serve you for many years.
The ASUS PRIME H810M-A-CSM motherboard is the perfect solution for people who need a reliable and efficient platform for work and entertainment. Thanks to the support for Intel processors, DDR3 memory and fast SATA and USB connectors, this motherboard will ensure smooth operation of all your favorite applications and games. The compact Micro-ATX size makes it ideal for smaller cases, which saves space on your desk.
ASUS PRIME H810M-A-CSM has been designed for easy installation and configuration. An intuitive BIOS and a rich set of connectors make connecting all the necessary components simple and quick. In addition, the motherboard is equipped with a number of protections that protect it from damage caused by overvoltages and other power problems.
By choosing the ASUS PRIME H810M-A-CSM motherboard, you can be sure that your computer will operate stably and reliably for many years. It is an excellent choice for anyone looking for a solid foundation for their computer, whether it is a computer for work, entertainment or study.
Specifications
| Wi-Fi | Nie |
| Pkwiu | 26.20.40.0 |
| LED RGB | Tak |
| Microphone | Tak |
| Processor | Intel Core Ultra (Series 2) |
| BIOS type | UEFI AMI |
| HDMI version | 2.1 |
| TPM connector | Tak |
| LAN controller | Intel I219V |
| Product weight | 534 g |
| S/PDIF port | Tak |
| Product color | Czarny |
| Power supply type | ATX |
| Line-in | Tak |
| Processor socket | LGA 1851 (Socket V1) |
| Number of COM ports | 1 |
| DisplayPort version | 1.4 |
| Wake-On-LAN feature | Tak |
| Number of DisplayPorts | 1 |
| Number of PS/2 ports | 1 |
| Processor manufacturer | Intel |
| Product height | 37 mm |
| Number of HDMI ports | 1 |
| ECC compatibility | Non-ECC |
| Wired LAN | Tak |
| Product width | 244 mm |
| Memory slots type | DIMM |
| Number of M.2 (E) Slots | 1 |
| Number of M.2 (M) slots | 2 |
| Packaging height | 51,5 mm |
| Product depth | 222 mm |
| Number of USB 2.0 ports | 4 |
| Audio output channels | 7.1 kan. |
| Unbuffered memory | Tak |
| Packaging width | 270 mm |
| Motherboard form factor | Micro ATX |
| Number of memory slots | 2 |
| Number of RGB LED connectors | 3 |
| Motherboard chipset | Intel H810 |
| Weight with packaging | 782 g |
| Packaging depth | 263 mm |
| Number of SATA III connectors | 4 |
| Number of HDDs supported | 4 |
| Integrated graphics card | Nie |
| Chipset family | Intel |
| Shipping time (in hours) | 24 |
| Memory channel support | Dwukanałowy |
| Front panel connector | Tak |
| Supported drive types | HDD & SSD |
| Supported memory types | DDR5-SDRAM |
| ATX (24-pin) power connector | Tak |
| Supported processor sockets | LGA 1851 |
| CPU fan connector | Tak |
| EPS power connector (8-pin) | Tak |
| Number of CPU fan connectors | 1 |
| Maximum memory capacity | 128 GB |
| PCI Express x1 Slots (Gen 4.x) | 1 |
| Ethernet interface type | Gigabit Ethernet |
| 1st largest M.2 key size | 2280 |
| 2nd largest M.2 key size | 2280 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) ports | 2 |
| Front panel audio connector | Tak |
| Number of Ethernet LAN (RJ-45) ports | 1 |
| Number of case fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 1 |
| Parallel processing support | Nieobsługiwany |
| Supported hard drive interfaces | M.2, PCI Express 4.0, SATA III |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| Supported Windows operating systems | Windows 11, Windows 10 x64 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports | 2 |
| Supported memory clock speed (max) | 6400 MHz |
| Number of supported storage drive sizes | 6 |
| Manufacturer | ASUS |
| Disc type | micro-ATX |
ASUS PRIME H810M-A-CSM - Micro-ATX Motherboard Socket 1150
