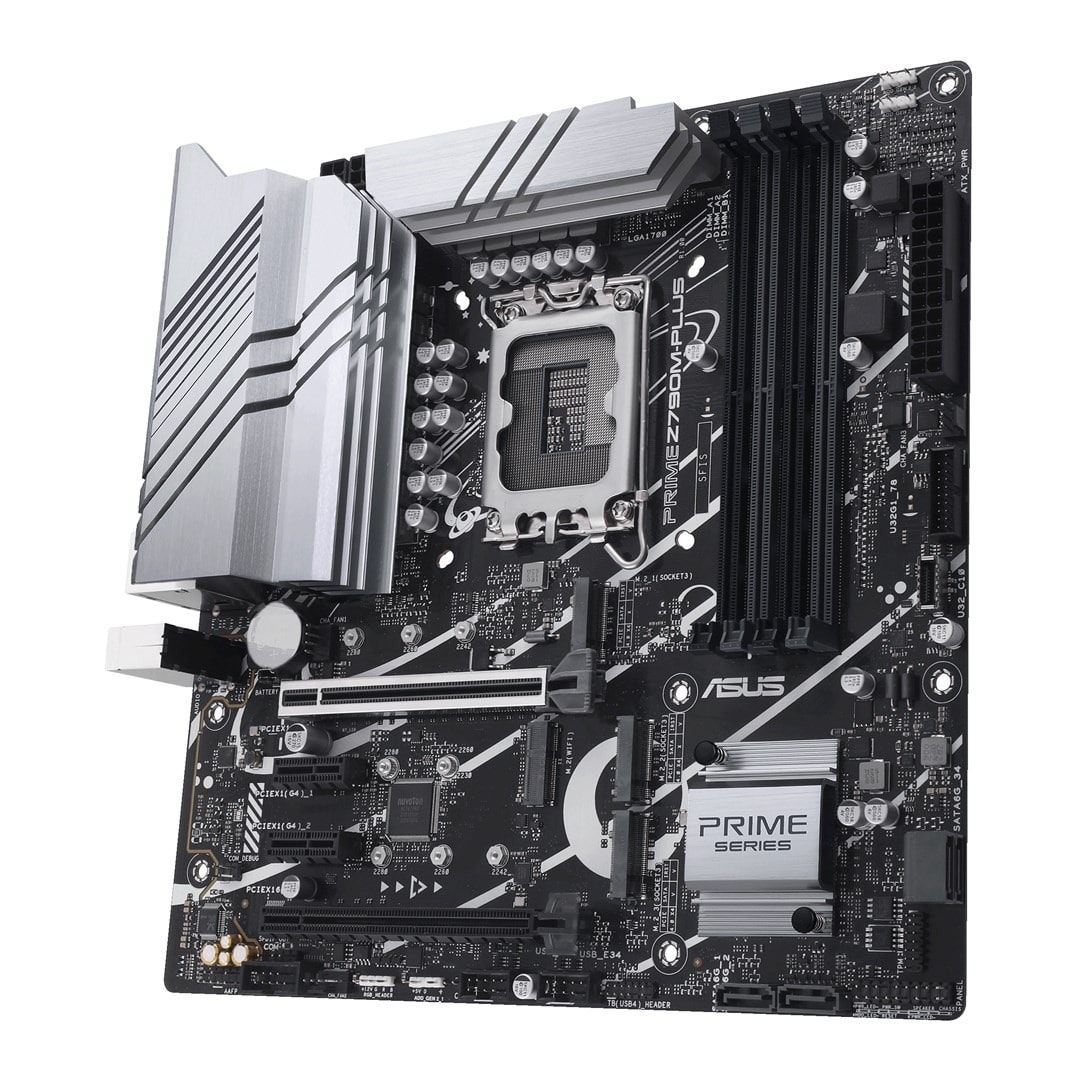

ASUS PRIME Z790M-PLUS MOTHERBOARD
Discover reliability and performance with the ASUS PRIME Z790M-PLUS motherboard. Designed for the latest Intel processors, this motherboard offers a solid foundation for your computer. Ideal for gamers and professionals who demand stability and expandability.
- Support for Intel Core processors 12th and 13th generation
- Micro-ATX form factor - compact size, ideal for smaller cases
- Intel Z790 chipset - high performance and stability
- PCIe 5.0 slots - support for the latest graphics cards
- M.2 connectors - fast data transfer for SSDs
- Advanced cooling options - ensure stable operation even under load
- ASUS technologies - reliability and innovative solutions
ASUS is a renowned manufacturer of computer components, known for the high quality and reliability of its products. ASUS motherboards from the PRIME series are characterized by a solid construction and advanced technologies that ensure stable operation of the computer for a long time. By choosing ASUS PRIME Z790M-PLUS, you invest in reliability and performance.
The ASUS PRIME Z790M-PLUS motherboard is the ideal solution for people who plan to build a high-performance computer for gaming, work or multimedia. Thanks to the support of the latest Intel Core processors, fast SSDs and graphics cards, this motherboard provides smooth and responsive operation even in the most demanding applications. In addition, advanced cooling options allow you to maintain a stable component temperature, which translates into a longer computer life.
ASUS PRIME Z790M-PLUS also offers a wide range of connectors and ports that allow you to connect various peripheral devices. USB 3.2 Gen 2 connectors provide fast data transfer, and high-quality audio connectors guarantee excellent sound. In addition, the motherboard has connectors for fans and water pumps, which allows you to create an advanced cooling system.
By choosing the ASUS PRIME Z790M-PLUS motherboard, you can be sure that your computer will work stably and efficiently for a long time. This motherboard is an excellent investment for anyone who values reliability and high quality.
Specifications
| Wi-Fi | Nie |
| LED RGB | Tak |
| Microphone | Tak |
| Processor | Intel® Core™ i5, Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i9, Intel® Core™ i7, Intel® Core™ i3 |
| Cables | SATA |
| BIOS type | UEFI AMI |
| HDMI version | 2.0 |
| RAID levels | 1, 10, 5 |
| RAID service | Tak |
| S/PDIF port | Tak |
| Product color | Czarny, Aluminiowy |
| Audio connector | Tak |
| Power supply type | ATX |
| Line-in | Tak |
| Processor socket | LGA 1700 |
| Number of COM ports | 1 |
| DisplayPort version | 1.4 |
| Number of DisplayPorts | 1 |
| Processor manufacturer | Intel |
| Number of HDMI ports | 1 |
| ECC compatibility | Non-ECC |
| USB supported type | USB Typu-A |
| Wired LAN | Tak |
| Product width | 244 mm |
| Memory slots type | DIMM |
| Serial port connector | 1 |
| Fan connector | Tak |
| Number of M.2 (M) slots | 3 |
| Headphone outputs | 1 |
| Product depth | 244 mm |
| Number of USB 2.0 ports | 4 |
| Audio output channels | 7.1 kan. |
| Thunderbolt ports | 1 |
| Unbuffered memory | Tak |
| 12V power connector | Tak |
| Motherboard form factor | Micro ATX |
| Number of memory slots | 4 |
| Motherboard chipset | Intel Z790 |
| Number of SATA III connectors | 4 |
| Number of HDDs supported | 3 |
| Integrated graphics card | Nie |
| Chipset family | Intel |
| Memory channel support | Dwukanałowy |
| Supported drive types | HDD & SSD |
| Supported memory types | DDR5-SDRAM |
| ATX (24-pin) power connector | Tak |
| CPU fan connector | Tak |
| EPS power connector (8-pin) | Tak |
| Maximum memory capacity | 128 GB |
| PCI Express x1 Slots (Gen 4.x) | 2 |
| Ethernet interface type | Gigabit Ethernet |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 slots (Gen 5.x) | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) ports | 2 |
| Number of Ethernet LAN (RJ-45) ports | 1 |
| Number of case fan connectors | 3 |
| Supported hard drive interfaces | M.2, PCI Express 4.0, SATA |
| Number of USB 3.2 Gen 2x2 Type-C ports | 1 |
| Supported Windows operating systems | Windows 10, Windows 11 |
| Supported memory clock speeds | 5600 MHz, 6400 MHz, 4800 MHz, 7000, 6200 MHz, 5400 MHz, 5000 MHz, 6000 MHz, 5800 MHz, 5200 MHz, 6600, 6800, 7200 |
| Peripheral (Molex) (4-pin) power connectors | 1 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 4 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports | 1 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports | 1 |
| Number of supported storage drive sizes | 4 |
| Chipset | Intel Z790 |
| Manufacturer | ASUS |
| Motherboard type | Micro-ATX |
| Disc type | Micro-ATX |
ASUS PRIME Z790M-PLUS - Micro-ATX Motherboard for Demanding Users
