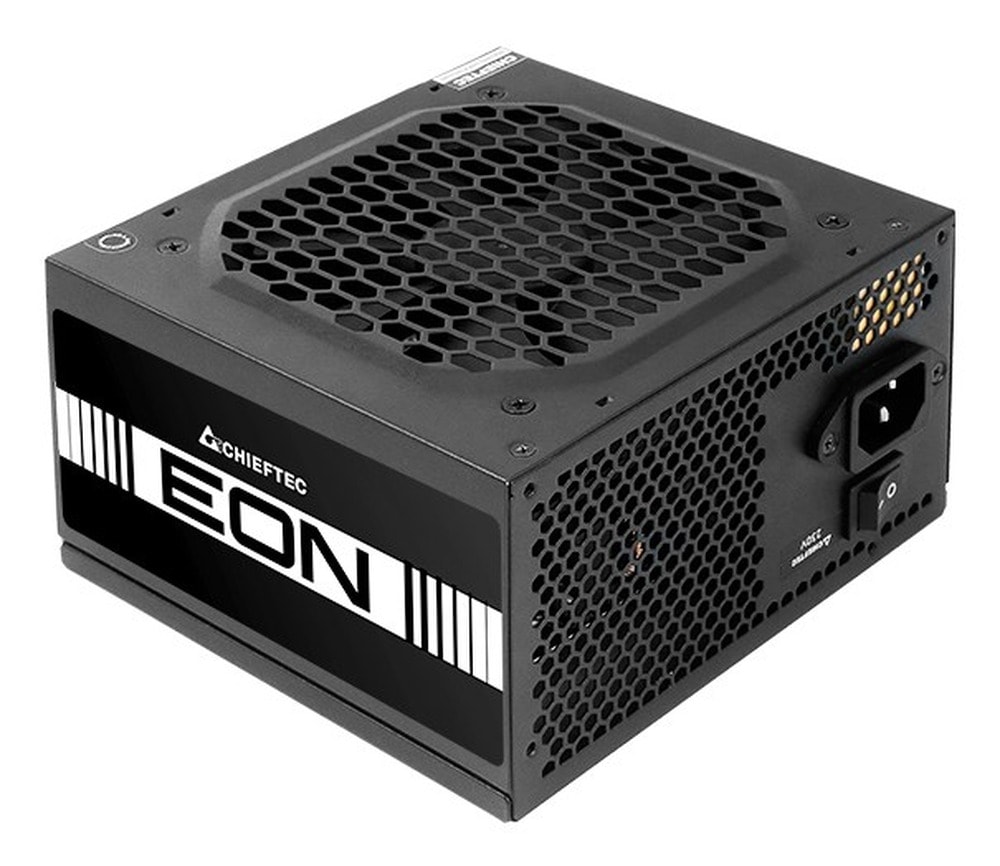

CHIEFTEC ZPU-500S 500W ATX 120MM 80+WHITE APFC POWER SUPPLY


The Chieftec ZPU-500S power supply is a reliable power source for your computer. Designed with stability and efficiency in mind, it ensures optimal performance even during intensive use. Ideal for both home and office applications, it guarantees long-term operation and the safety of components.


  • 500W Power - sufficient for most PC configurations
  • 80+ White Certificate - high energy efficiency
  • 120mm Fan - quiet operation and effective cooling
  • Active PFC (aPFC) - improvement of the power factor
  • ATX Compliance - standard compatibility
  • Protections - OVP, UVP, SCP, OPP


Chieftec is a renowned power supply manufacturer, known for the high quality and reliability of its products. Chieftec power supplies are designed with attention to every detail, which translates into their long life and stable operation. By choosing a Chieftec power supply, you invest in the safety and efficiency of your computer.


The Chieftec ZPU-500S 500W ATX 120mm 80+White aPFC power supply is an excellent choice for those looking for a reliable and efficient power supply for their computer. Thanks to the 80+ White certificate, the power supply is characterized by high energy efficiency, which translates into lower electricity bills and less burden on the environment. The 120mm fan ensures quiet operation, which is especially important in home and office applications. Active PFC (aPFC) improves the power factor, which further increases the energy efficiency of the power supply.


The Chieftec ZPU-500S power supply is equipped with a number of protections, such as OVP (Over Voltage Protection), UVP (Under Voltage Protection), SCP (Short Circuit Protection) and OPP (Over Power Protection), which protect computer components from damage caused by incorrect voltage, short circuit or overload. Thanks to this, you can be sure that your computer is safe and protected from failures.


The Chieftec ZPU-500S 500W ATX 120mm 80+White aPFC power supply is an investment in the reliability and safety of your computer. By choosing this power supply, you gain confidence that your computer will operate stably and efficiently for a long time. Regardless of whether you use your computer for work, entertainment or games, the Chieftec ZPU-500S power supply will provide you with a reliable source of energy.


CARUNO-2025-12-10-09:50:21 cu

Specifications

ATX version2.3
Total power500 W
PurposePC/serwer
Product weight1,2 kg
Product colorCzarny
Warranty period2 lat(a)
Cabling typeNiemodularne
Input current3.5 A
Type of packagingPudełko
80 PLUS certification80 PLUS
Cooling typeAktywne
Power factor0,9
Product height86 mm
Combined power (+5 V)100 W
Combined Power (-12V)4,8 W
Product width150 mm
Combined power (+12 V)444 W
Built-in switchTak
Combined power (+3.3 V)100 W
Total power (+5 Vsb)12,5 W
Compliance certificatesCB, CE, EAC, RoHS
Product depth140 mm
Power supply unit (PSU) typeATX
AC input voltage200 - 240 V
Weight with packaging1,45 kg
Hazard pictogram(s)GHS07: Substancje drażniące, GHS09: Substancje szkodliwe dla środowiska, GHS02: Substancje łatwopalne
Power protection featuresPrzepięcia i prąd rozruchowy, Krótkie spięcie, Ochrona przeciwprzepięciowa
Motherboard power connector20+4 pin ATX
Fan blade diameter12 cm
AC input frequency50 Hz
CPU power connector (4+4 pin)Tak
EPS power connector (4+4 pin)Tak
Motherboard cable length65 cm
Supported motherboard typeATX
ATX power connector (20+4 pin)Tak
Maximum output current (+5 V)20 A
SATA power cable length600, 750, 450
Number of SATA power connectors4
Maximum output current (+3.3V)20 A
Maximum output current (-12 V)0,4 A
Maximum output current (+12 V1)37 A
Maximum output current (+5 Vsb)2,5 A
PCI Express power connectors (6+2 pin)1
Peripheral (Molex) (4-pin) power connectors2
Peripheral (Molex) Power cable length450 mm, 150
Environmental certificate (sustainable development)ErP
PFC (Power Factor Correction) typeAktywne
Power500 W
ManufacturerChieftec
