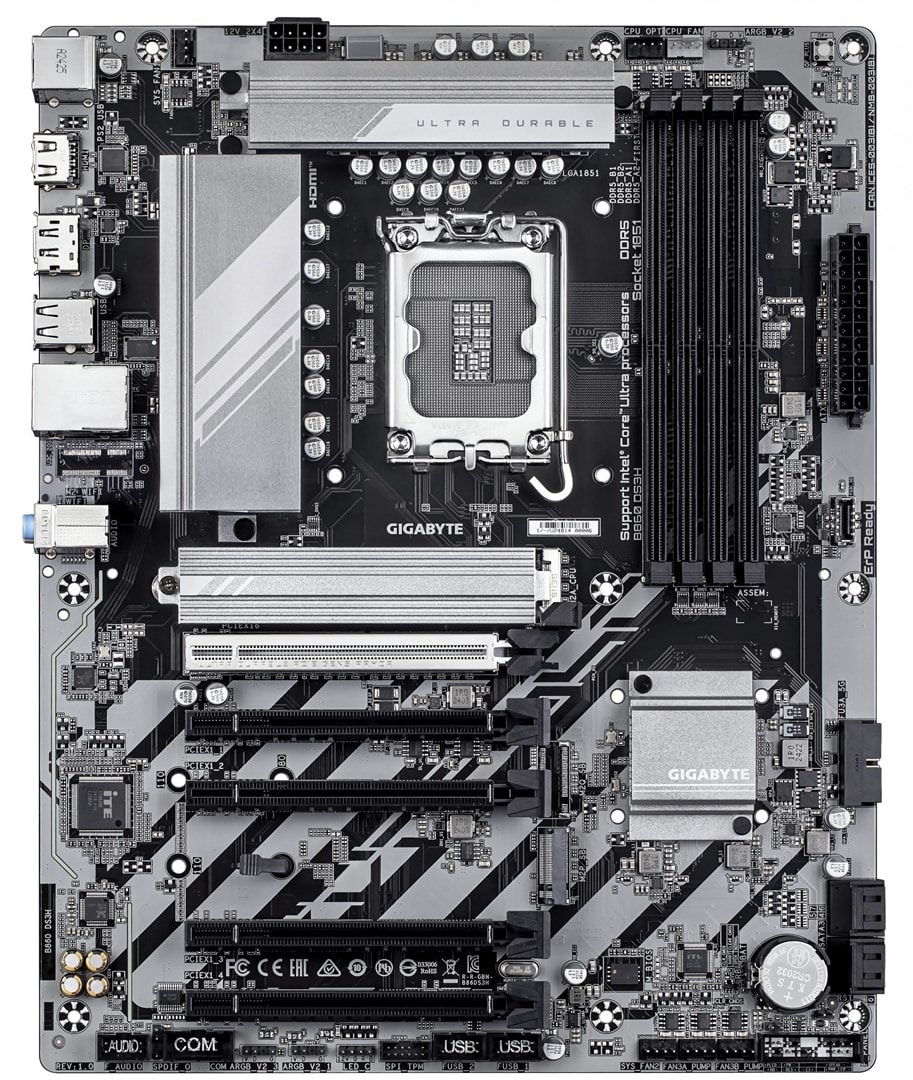

GIGABYTE B860 DS3H MOTHERBOARD
Discover reliability and performance with the Gigabyte B860 DS3H motherboard. Designed for computer enthusiasts and professionals, this motherboard offers a solid foundation for your system. Ensure stability and speed of operation, which are crucial for demanding applications and games.
- Support for the latest Intel Core processors
- ATX format for wide compatibility
- DDR5 memory support for fast data transfer
- High-quality components ensuring long life
- Advanced cooling options for stable operation
- Rich set of ports for versatile connectivity
The Gigabyte B860 DS3H motherboard is an ideal choice for those looking for a reliable and efficient platform. Thanks to the support of the latest Intel Core processors, you can enjoy smooth operation even with the most demanding applications. The ATX format ensures wide compatibility with various cases and components, giving you great freedom in system configuration.
The use of DDR5 memory guarantees fast data transfer and system responsiveness. High-quality components used in the motherboard ensure long life and stable operation, even under heavy load. Advanced cooling options allow you to maintain the optimum temperature, which translates into reliability and performance.
Gigabyte is a renowned manufacturer of computer components, known for its high quality and innovative solutions. Gigabyte motherboards are valued by users around the world for their reliability, performance and rich set of features. By choosing the Gigabyte B860 DS3H, you are investing in a product that will meet your expectations and provide satisfaction from use for a long time.
The Gigabyte B860 DS3H motherboard is an excellent choice for gamers, professionals and anyone who needs a reliable and efficient platform for work and entertainment. Thanks to the rich set of ports, you can connect all the necessary devices and accessories. Give yourself an advantage with the Gigabyte B860 DS3H motherboard.
Specifications
| HDCP | Tak |
| Wi-Fi | Nie |
| LED RGB | Tak |
| Microphone | Tak |
| Processor | Intel Core Ultra (Seria 1), Intel Core Ultra (Series 2) |
| BIOS type | UEFI AMI |
| ACPI version | 5.0 |
| HDMI version | 2.1 |
| RAID levels | 10, 5 |
| Audio system | Realtek ALC897 |
| RAID service | Tak |
| TPM connector | Tak |
| LAN controller | Realtek RTL8125 |
| Purpose | PC |
| Product weight | 2 kg |
| S/PDIF port | Tak |
| Product color | Ciemny brąz |
| Battery type | Lithium-Manganese Dioxide (LiMnO2) |
| DirectX version | 12.0 |
| Warranty period | 3 lat(a) |
| Country of origin | Chiny |
| Power supply type | ATX |
| Line-in | Tak |
| Processor socket | LGA 1851 (Socket V1) |
| Clear CMOS jumper | Tak |
| Batteries included | Tak |
| Screws included | Tak |
| Cooling type | Pasywne |
| DisplayPort version | 2.1 |
| Number of DisplayPorts | 1 |
| Number of PS/2 ports | 1 |
| Processor manufacturer | Intel |
| Product height | 35 mm |
| Number of HDMI ports | 1 |
| ECC compatibility | ECC lub Non-ECC |
| Wired LAN | Tak |
| Product width | 305 mm |
| Memory slots type | DIMM |
| Serial port connector | 1 |
| Number of M.2 (M) slots | 2 |
| BIOS memory size | 256 Mbit |
| Headphone outputs | 1 |
| Packaging height | 80 mm |
| Product depth | 244 mm |
| Number of USB 2.0 ports | 4 |
| Number of battery cells | 1 |
| Audio output channels | 7.1 kan. |
| Unbuffered memory | Tak |
| Packaging width | 335 mm |
| Motherboard form factor | ATX |
| Number of memory slots | 4 |
| Number of RGB LED connectors | 4 |
| Motherboard chipset | Intel B860 |
| Packaging depth | 270 mm |
| Battery/Accumulator Weight | 3 g |
| Number of SATA III connectors | 4 |
| Number of HDDs supported | 4 |
| Lithium battery weight | 0,07 g |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Maximum resolution | 4096 x 2160 px |
| Chipset family | Intel |
| Supported battery type | CR2032 |
| Memory channel support | Dwukanałowy |
| Front panel connector | Tak |
| Number of water pump connectors | 3 |
| Supported drive types | HDD & SSD |
| BIOS version (SMBIOS) | 2.7 |
| PC health monitoring | Napięcie, Wentylator, Temperatura, Water cooling |
| Supported memory types | DDR5-SDRAM |
| ATX (24-pin) power connector | Tak |
| Supported processor sockets | LGA 1851 |
| CPU fan connector | Tak |
| EPS power connector (8-pin) | Tak |
| Number of CPU fan connectors | 2 |
| Maximum memory capacity | 256 GB |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| 1st largest M.2 key size | 25110 |
| 2nd largest M.2 key size | 25110 |
| PCI Express x16 (Gen 4.x) slots | 4 |
| PCI Express x16 slots (Gen 5.x) | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) ports | 2 |
| Front panel audio connector | Tak |
| Number of Ethernet LAN (RJ-45) ports | 1 |
| Number of case fan connectors | 4 |
| Number of EPS power connectors (8-pin) | 1 |
| Parallel processing support | Nieobsługiwany |
| Supported hard drive interfaces | M.2, SATA III |
| Number of USB 3.2 Gen 2x2 Type-C ports | 1 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| Supported Windows operating systems | Windows 11 x64, Windows 10 x64 |
| Supported memory clock speeds | 5600 MHz, 6400 MHz, 9066 |
| Maximum internal memory per slot | 64 GB |
| Desktop Management Interface (DMI) version | 2.7 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports | 1 |
| Supported memory clock speed (max) | 9066 MHz |
| Products per shipping case (inner) | 1 szt. |
| Number of supported storage drive sizes | 6 |
Gigabyte B860 DS3H - ATX DDR5 Motherboard for Demanding Users
Gross price, incl. VAT
Wyprodukowano w: TajwanEAN: 4719331868178
