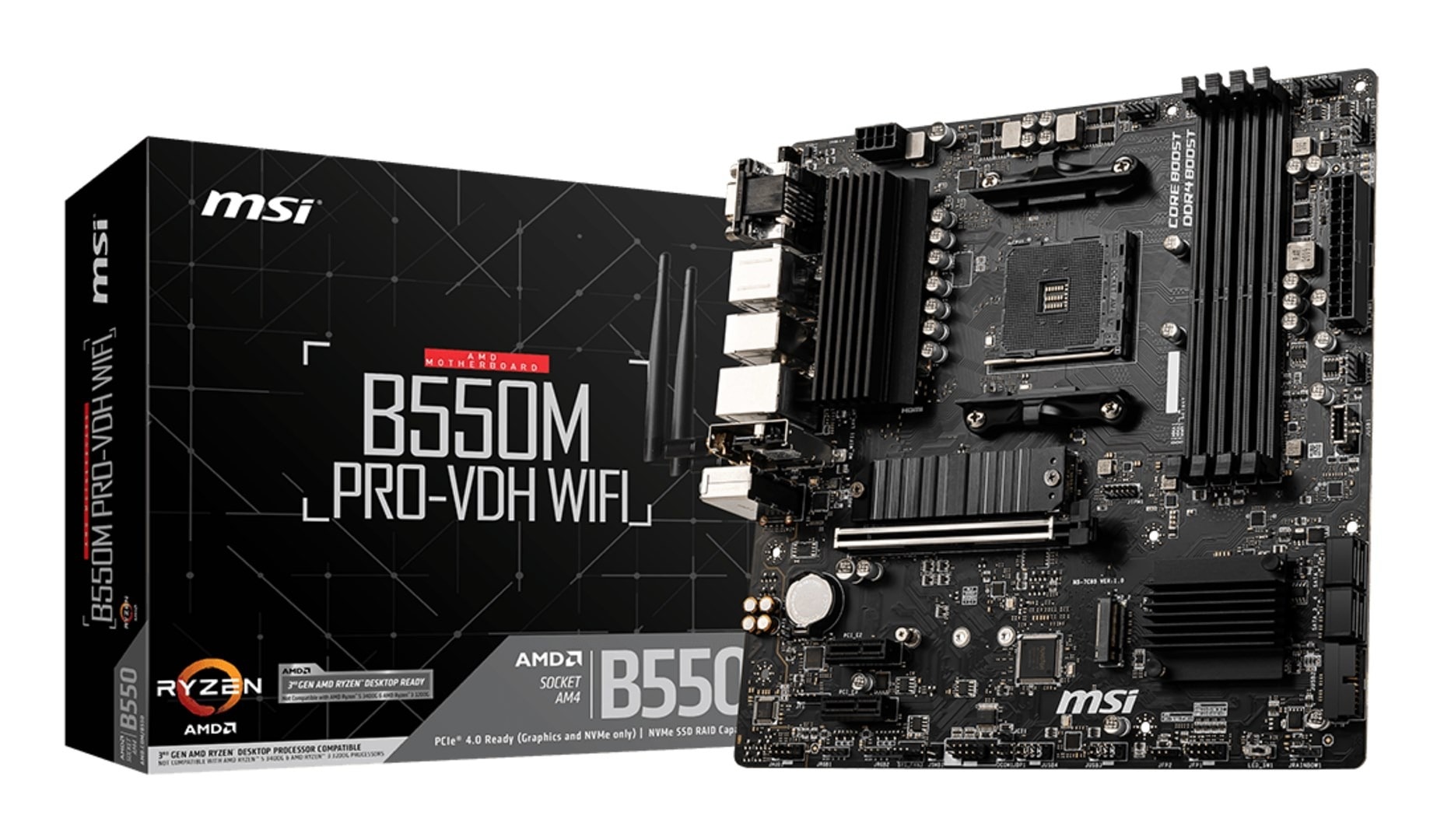

MSI B550M PRO-VDH WIFI MOTHERBOARD
Immerse yourself in the world of reliable performance and stability with the MSI B550M PRO-VDH WIFI motherboard. Designed to meet the demands of modern AMD Ryzen processors, this motherboard combines high-quality workmanship with rich functionality. Ideal for both gaming enthusiasts and professionals.
- AMD Ryzen Processor Support: Compatible with the latest AMD Ryzen processors, delivering exceptional performance.
- Fast Wi-Fi and Bluetooth Connectivity: Built-in Wi-Fi and Bluetooth module enables wireless connection to the network and devices.
- Two M.2 Slots: Two M.2 slots allow you to install fast NVMe SSDs, which speeds up system and application loading.
- Reinforced PCI-E Slot: Reinforced PCI-E slot protects the graphics card from mechanical damage.
- High-Quality Components: The motherboard is equipped with high-quality components, which guarantees stable and reliable operation.
MSI is a renowned motherboard manufacturer known for innovative solutions and high-quality products. The B550M PRO-VDH WIFI motherboard is an excellent choice for those who value reliability and performance. Thanks to the use of high-quality components, the motherboard ensures stable operation even under heavy load.
The MSI B550M PRO-VDH WIFI motherboard is an excellent solution for building a gaming computer or workstation. Support for AMD Ryzen processors and fast NVMe SSDs allows for smooth operation in demanding applications and games. The built-in Wi-Fi and Bluetooth module enables wireless connection to the network and devices, which increases user comfort.
Thanks to the reinforced PCI-E slot, the motherboard protects the graphics card from mechanical damage. This is especially important for heavy graphics cards that can strain the PCI-E slot. High-quality components and an advanced cooling system ensure stable operation even under heavy load.
Specifications
| Wi-Fi | Tak |
| LED RGB | Tak |
| Processor | AMD Ryzen 3000 Series |
| Cables | SATA |
| Bluetooth | Tak |
| Warnings | Przechowuj z dala od wody oraz źródeł wilgoci., Utylizuj zgodnie z lokalnymi przepisami dotyczącymi elektroodpadów., Unikaj bezpośredniego kontaktu z wrażliwymi komponentami elektronicznymi. |
| RAID levels | 1, 10 |
| Audio system | Realtek ALC892 |
| RAID service | Tak |
| LAN controller | Realtek 8111HN |
| Product weight | 1 kg |
| Product color | Czarny |
| Wi-Fi standards | 802.11b, Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g |
| Bluetooth version | 4.2 |
| Processor socket | Socket AM4 |
| Clear CMOS jumper | Tak |
| Drivers included | Tak |
| Number of DisplayPorts | 1 |
| Number of PS/2 ports | 1 |
| Processor manufacturer | AMD |
| Product height | 65 mm |
| Number of HDMI ports | 1 |
| ECC compatibility | ECC lub Non-ECC |
| Wired LAN | Tak |
| Product width | 244 mm |
| Memory slots type | DIMM |
| Serial port connector | 1 |
| Number of M.2 (M) slots | 2 |
| Product depth | 244 mm |
| Number of USB 2.0 ports | 2 |
| Audio output channels | 7.1 kan. |
| Unbuffered memory | Tak |
| 12V power connector | Tak |
| Motherboard form factor | Micro ATX |
| Number of memory slots | 4 |
| Motherboard chipset | AMD B550 |
| Number of SATA III connectors | 4 |
| Primary Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Number of VGA (D-Sub) ports | 1 |
| Maximum resolution | 4096 x 2160 px |
| Chipset family | AMD |
| Memory channel support | Dwukanałowy |
| WiFi-AP antenna Jack plug | 2 |
| Number of mounting holes | 8 |
| Supported drive types | HDD & SSD |
| Supported memory types | DDR4-SDRAM |
| ATX (24-pin) power connector | Tak |
| Supported processor sockets | Socket AM4 |
| CPU fan connector | Tak |
| Maximum memory capacity | 128 GB |
| PCI Express x1 slots (Gen 3.x) | 2 |
| Ethernet interface type | Gigabit Ethernet |
| PCI Express x16 (Gen 4.x) slots | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) ports | 1 |
| Harmonized System (HS) code | 84733020 |
| Maximum number of SMP processors | 1 |
| Number of Ethernet LAN (RJ-45) ports | 1 |
| Maximum graphics card memory | 16000 MB |
| Number of case fan connectors | 3 |
| Parallel processing support | Nieobsługiwany |
| Supported hard drive interfaces | SATA III |
| Supported memory clock speeds | 2133 MHz, 1866 MHz, 3600 MHz, 2400 MHz, 4000 MHz, 3066 MHz, 3200 MHz, 3733 MHz, 4266 MHz, 4133 MHz, 3866 MHz, 3000 MHz, 2800 MHz, 4400 MHz, 2933 MHz, 3466 MHz, 2667 MHz |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 4 |
| Expected lifespan with standard use | 36 mies. |
| Model | B550M PRO-VDH WIFI |
| Manufacturer | MSI |
