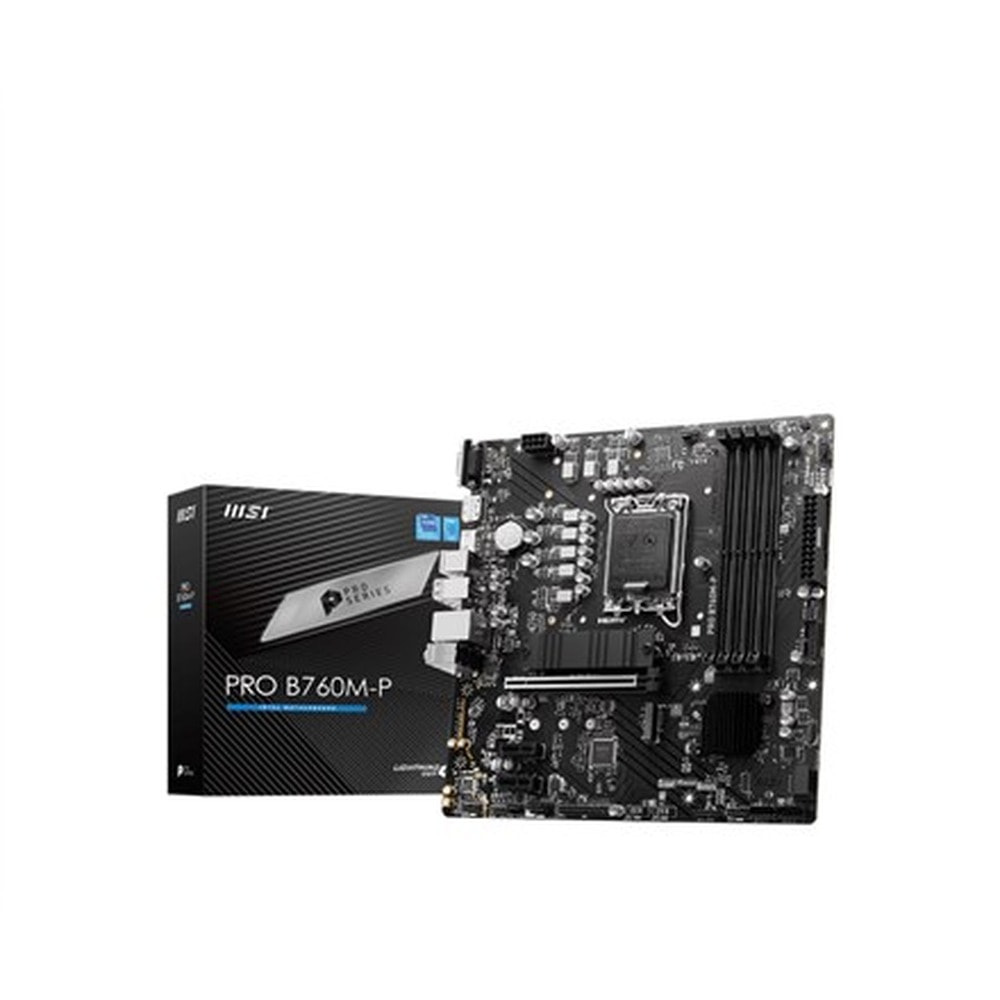

MSI PRO B760M-P MOTHERBOARD
Discover reliability and performance with the MSI PRO B760M-P motherboard. Designed for professionals and computer enthusiasts, this Micro-ATX motherboard offers a solid foundation for your system. It provides stability, energy efficiency, and extensive expansion options, making it an ideal choice for a variety of applications.
- Support for Intel Core processors 12th and 13th generation
- Micro-ATX format – compact size, high functionality
- Two M.2 slots for fast NVMe SSDs
- Reinforced PCIe slots for graphics cards
- High-quality components ensuring stability and durability
- Extensive cooling options for optimal operating temperature
- Easy BIOS configuration with an intuitive interface
MSI is a renowned manufacturer of computer components, known for innovative solutions and high-quality workmanship. MSI PRO motherboards are characterized by reliability and stability, which is confirmed by numerous certificates and positive user reviews worldwide. By choosing the MSI PRO B760M-P, you are investing in a product that will meet your expectations and provide long-term satisfaction.
The MSI PRO B760M-P motherboard is an excellent choice for building a computer for work, study, entertainment, and even gaming. Thanks to the support of the latest Intel Core processors, you can enjoy smooth and responsive system performance. Two M.2 slots allow for the installation of fast NVMe SSDs, which significantly speeds up system and application startup. Reinforced PCIe slots ensure a stable connection with the graphics card, which is crucial for demanding games and graphics applications.
MSI PRO B760M-P also offers extensive cooling options, which allow you to maintain the optimal operating temperature of components, even under heavy load. Easy BIOS configuration with an intuitive interface makes it easy for even novice users to adjust the motherboard settings to their needs. High-quality components ensure long-term stability and reliability, which is especially important for computers used for work or study.
By choosing the MSI PRO B760M-P motherboard, you can be sure that your computer will run stably and efficiently for a long time. It is an investment in reliability and ease of use that will surely pay off.
Specifications
| Wi-Fi | Nie |
| Non-ECC | Tak |
| LED RGB | Tak |
| Microphone | Tak |
| Processor | Intel® Pentium® Gold, Intel® Celeron® |
| Cables | SATA |
| BIOS type | UEFI AMI |
| ACPI version | 6.4 |
| HDMI version | 1.4 |
| RAID levels | 0, 10, 5 |
| Audio system | Realtek ALC897 |
| RAID service | Tak |
| TPM connector | Tak |
| LAN controller | Realtek RTL8111H |
| Purpose | PC |
| Power supply type | ATX |
| Line-in | Tak |
| Processor socket | LGA 1700 |
| Clear CMOS jumper | Tak |
| Number of COM ports | 1 |
| DisplayPort version | 1.4 |
| Number of DisplayPorts | 1 |
| Number of PS/2 ports | 2 |
| Processor manufacturer | Intel |
| Number of HDMI ports | 1 |
| ECC compatibility | Non-ECC |
| Wired LAN | Tak |
| Product width | 243,8 mm |
| BIOS memory size | 256 Mbit |
| Headphone outputs | 1 |
| Parallel connector | Tak |
| Product depth | 243,8 mm |
| Number of USB 2.0 ports | 4 |
| Audio output channels | 7.1 kan. |
| Unbuffered memory | Tak |
| Motherboard form factor | Micro ATX |
| Number of memory slots | 4 |
| Motherboard chipset | Intel B760 |
| Number of SATA III connectors | 4 |
| Number of HDDs supported | 4 |
| Number of VGA (D-Sub) ports | 1 |
| Chipset family | Intel |
| Front panel connector | Tak |
| Supported drive types | HDD & SSD |
| BIOS version (SMBIOS) | 3.5 |
| Supported memory types | DDR5-SDRAM |
| ATX (24-pin) power connector | Tak |
| Supported processor sockets | LGA 1700 |
| CPU fan connector | Tak |
| Maximum memory capacity | 192 GB |
| PCI Express x1 Slots (Gen 4.x) | 2 |
| Ethernet interface type | Gigabit Ethernet |
| PCI Express x16 (Gen 4.x) slots | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) ports | 2 |
| Front panel audio connector | Tak |
| Chassis intrusion connector | Tak |
| Number of Ethernet LAN (RJ-45) ports | 1 |
| Supported hard drive interfaces | SATA III |
| Supported Windows operating systems | Windows 10 x64, Windows 11 x64 |
| Supported memory clock speeds | 5600 MHz, 6400 MHz, 5000 MHz, 6000 MHz, 5200 MHz, 6600, 6800, 4800 MHz, 6200 MHz, 5400 MHz, 5800 MHz |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 1 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports | 1 |
| Number of supported storage drive sizes | 6 |
| Expected lifespan with standard use | 36 mies. |
| Manufacturer | MSI |
| Disc type | Micro-ATX |
