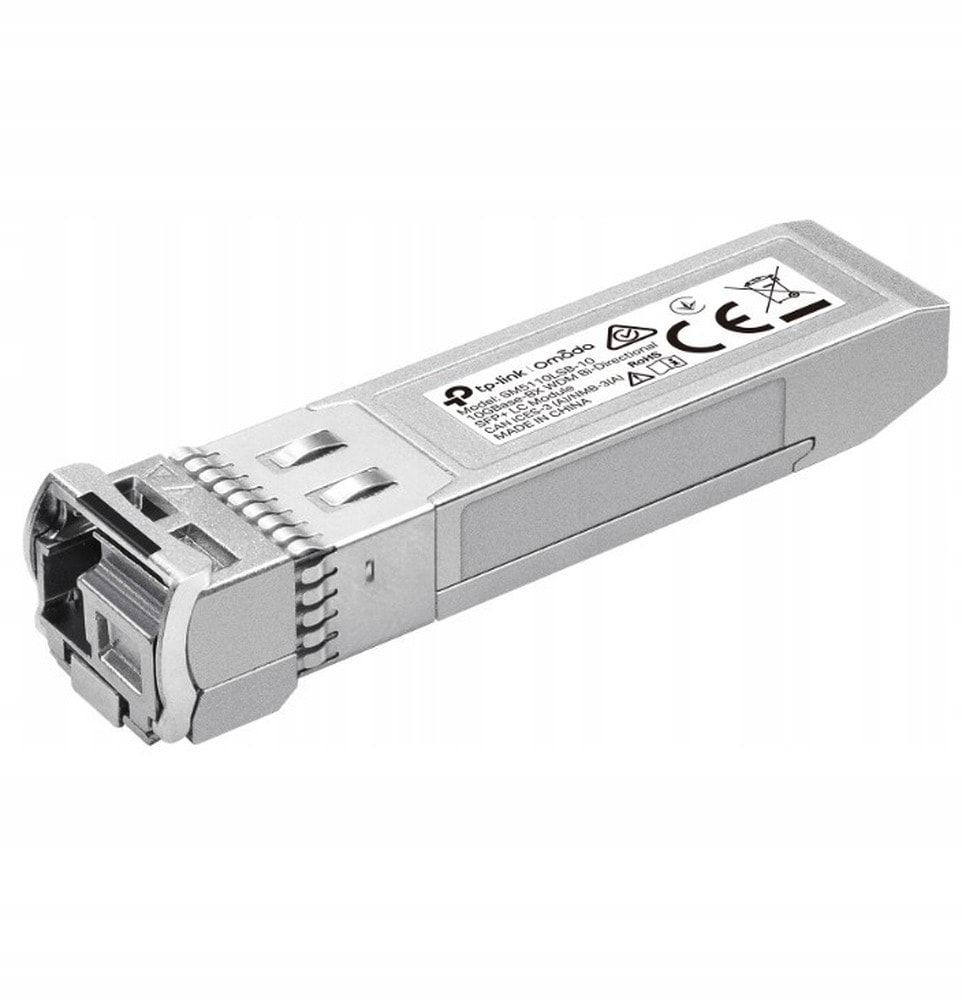

TP-Link Omada SM5110LSB-10 - SFP+ LC WDM 10GBase-BX Module for fast network
Kliknij = pełny ekran

TP-LINK OMADA SM5110LSB-10 SFP+ LC WDM 10GBASE-BX MODULE


Enhance your network performance with the TP-Link Omada SM5110LSB-10 module. This high-quality SFP+ module is designed to provide reliable and fast connections in your network infrastructure. Ideal for businesses that require stable and efficient data transmission.


  • High Speed: Supports 10GBase-BX for fast data transmission.
  • WDM Technology: Utilizes wavelength division multiplexing for efficient bandwidth utilization.
  • LC Connector: Standard LC connector ensures compatibility with most network devices.
  • Omada Compatibility: Works perfectly with devices from the TP-Link Omada series.
  • Bidirectional Transmission: Enables simultaneous reception and transmission of data.
  • Easy Installation: Simple installation in SFP+ slots without the need for additional tools.


The TP-Link Omada SM5110LSB-10 module is a key element of modern network infrastructure. Thanks to WDM (Wavelength Division Multiplexing) technology, this module effectively utilizes fiber optic bandwidth, enabling data transmission at speeds up to 10 Gb/s. It is an ideal solution for companies that need a reliable and fast connection to support large amounts of data, such as video streaming, file transfer, or cloud applications.


The LC connector, which is an industry standard, ensures broad compatibility with various network devices. The module is easy to install, allowing for quick deployment and minimization of network downtime. Additionally, bidirectional data transmission enables simultaneous reception and transmission, which increases the efficiency of communication in the network.


TP-Link is a global leader in providing reliable network solutions. TP-Link products are known for their high quality, innovation, and ease of use. The SM5110LSB-10 module is another example of the company's commitment to providing solutions that meet the needs of even the most demanding users. By choosing TP-Link, you choose certainty and reliability.


The TP-Link Omada SM5110LSB-10 module is ideal for use in data centers, corporate networks, and in environments where high bandwidth and connection reliability are required. Thanks to its versatility and ease of installation, this module is an excellent solution for any modern network.


CARUNO-2026-01-16-15:05:12 cu

Specifications

Hot-swapTak
Voltage3.3 V
Quantity1
Product colorSrebrny
Interface typeSFP+
Product height12 mm
Product width57 mm
SFP transceiver typeSwiatłowód
Compliance certificatesCE, Federalna Komisja Łączności (FCC), RoHS
Product depth14 mm
Communication standardsIEEE 802.3ae
RX wavelength (max)1330 nm
User manualTak
Wavelength (max)1270 nm
Fiber optic connectorLC (UPC)
Maximum transfer distance10000 m
Relative humidity range10 - 90%
Temperature range (operation)0 - 70 °C
Temperature range (storage)-40 - 85 °C
Permissible relative humidity5 - 90%
Maximum operating temperature70 °C
Single-mode fiber (SMF) supportTak
Digital Diagnostic Monitoring (DDM)Tak
Maximum data transfer rate10312 Mbit/s
Supported fiber optic cable diameters9/125
ManufacturerTP-Link
FeaturesNowość

TP-Link Omada SM5110LSB-10 - SFP+ LC WDM 10GBase-BX Module for fast network

41.60 £

Gross price, incl. VAT

Availability: 2 pcs
Delivery time: 2 business days
Safe shopping
BLIK, Visa, Mastercard
SGWyprodukowano w: Singapur

EAN: 8885020622942
